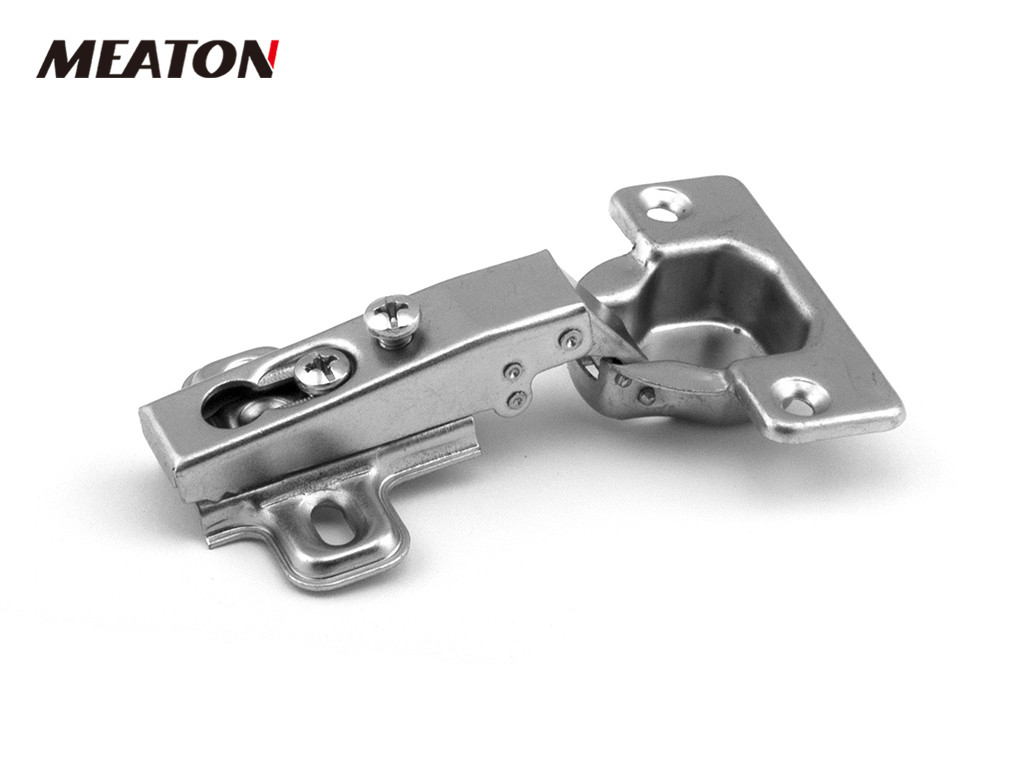

HG1102 | European Style Hot Sell General-type One Way Cabinet Hinge

HG1102 | European Style Hot Sell General-type One Way Cabinet Hinge

Short Description

MEATON 110 Degree 3D Adjustable Clip On Concealed Kitchen Cabinet Door European Hinge


Product Detail

Product Tags

HS2113 HG1102

The clip-on hinge is the easiest and quickest to fit, without any tools. It is ideal for doors requiring multiple hinges to be fitted this is because you simply line the hinge up with the mounting plate and push it on in one simple movement, it will then clip on to be connected to your mounting plate. They require very little alignment and make the job much easier when you have a few hinges to fit.

HG1102

Technical Specifications

• Main material: cold-rolled steel.

• Opening angle: 110°.

• Depth of hinge cup: 11.3mm.

• Diameter of hinge cup: 35mm.

• Door(C) dimension: 3-7mm.

• Door thickness: 14-23mm.

Product Parameters

Finish Nickle plate
Material Cold-rolled steel
Closing Angle 105°
Dia of hinge cup 35mm
Depth of hinge cup 11.3mm
Door thickness 14-23mm
Installation General
Size Overlay
Opening & closing cycle 50,000 times
