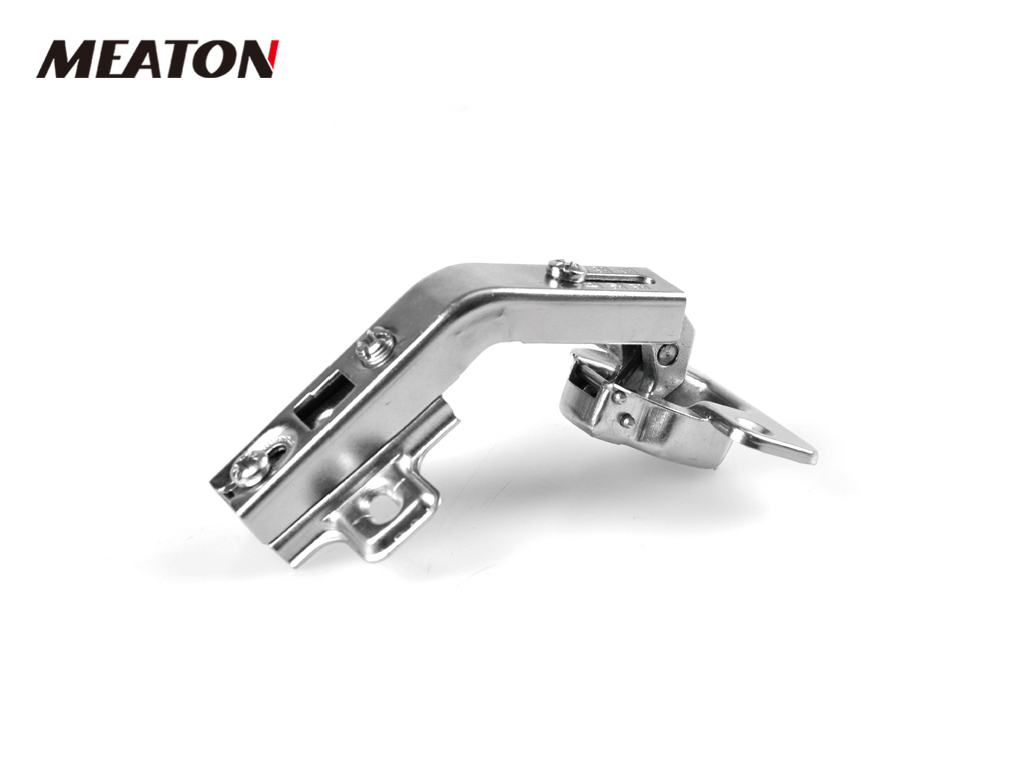

HG1151 | 115°Slide-on hinge

HG1151 | 115°Slide-on hinge

Short Description

• Main material: cold-rolled steel.

• Closing angle: 115°.

• Opening angle: 95°.

• Dia. of hinge cup: 35mm.

• Depth of hinge cup: 12.7mm.

• Door(C) dimension: 3-7mm.

• Door thickness: 14-23mm.


Product Detail

Product Tags

Technical Specifications

HG1151

• Main material: cold-rolled steel.

• Closing angle: 115°.

• Opening angle: 95°.

• Dia. of hinge cup: 35mm.

• Depth of hinge cup: 12.7mm.

• Door(C) dimension: 3-7mm.

• Door thickness: 14-23mm.

Installation method Hinge cup (mm)
45 48 52
Chipboard screw on 333.021.492 333.021.592 333.021.692
Euro screw on / 333.021.593 /
M8 dowel 333.021.498 333.021.598 333.021.698
M10 dowel 333.021.499 333.021.599 333.021.699

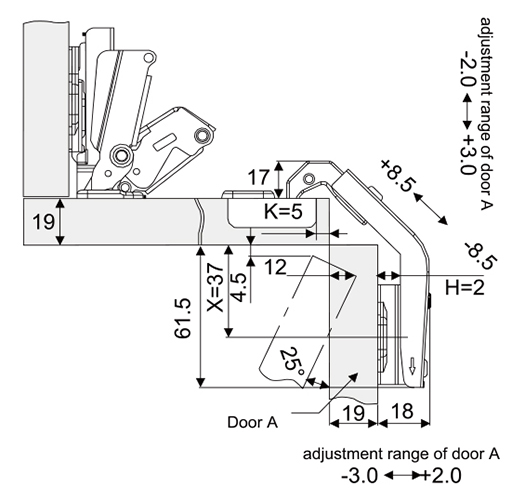

Application of Ø 35mm hinge

H=Height of hinge base
D=Required overlay on side board
K=Distance between door edge and drilling
holes on hinge cup
X=Gap between mounting plate and board

HG1151_06

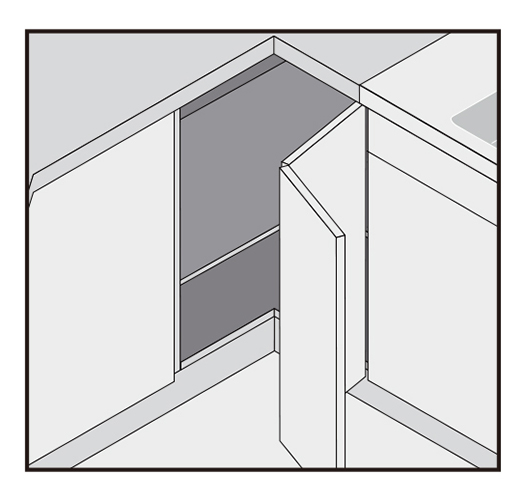

HG1151_07
