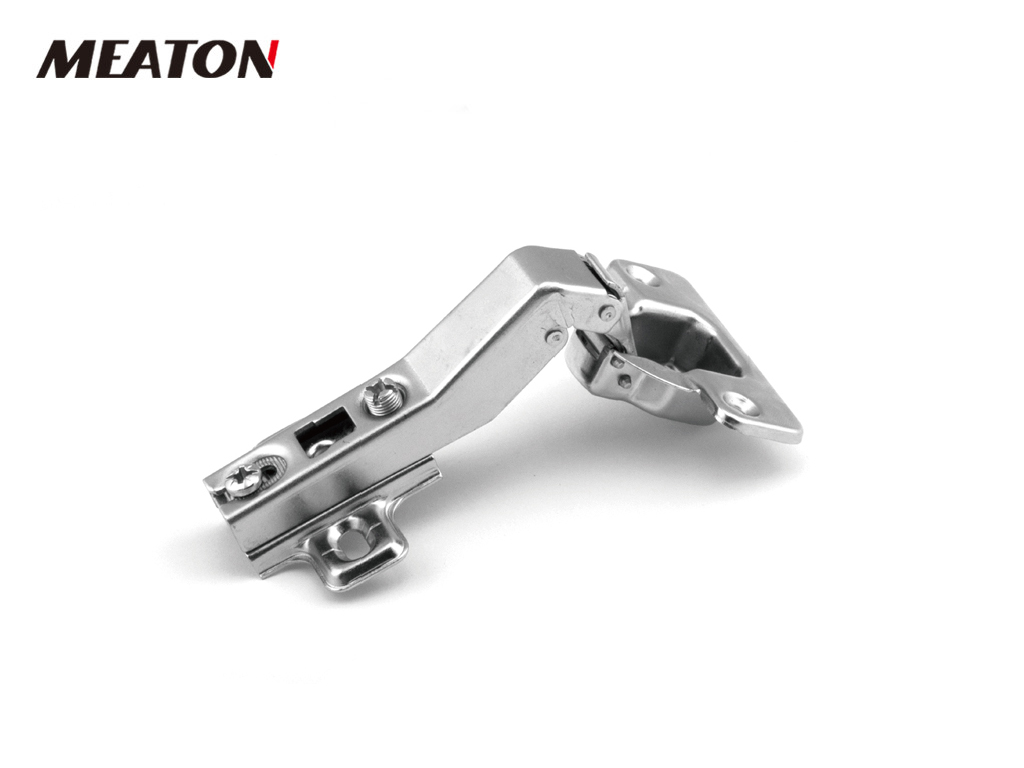

HG1451 | 45°Slide-on hinge
HG1451 | 45°Slide-on hinge
Short Description
Technical Specifications
• Main material: cold-rolled steel.
• Closing angle: 45°.
• Opening angle: 95°.
• Dia. of hinge cup: 35mm.
• Depth of hinge cup: 12.7mm.
• Door(C) dimension: 3-7mm.
• Door thickness: 14-23mm.
| Installation method | Hinge cup (mm) | |||||||||||||||||||||
| 45 | 48 | 52 | ||||||||||||||||||||
| Chipboard screw on | 333.013.492 | 333.013.592 | 333.013.692 | |||||||||||||||||||
| Euro screw on | / | 333.013.593 | / | |||||||||||||||||||
| M8 dowel | 333.013.498 | 333.013.598 | 333.013.698 | |||||||||||||||||||
| M10 dowel | 333.013.499 | 333.013.599 | 333.013.699 | |||||||||||||||||||

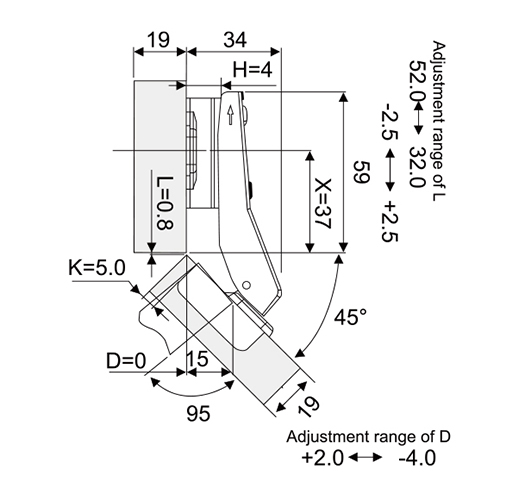

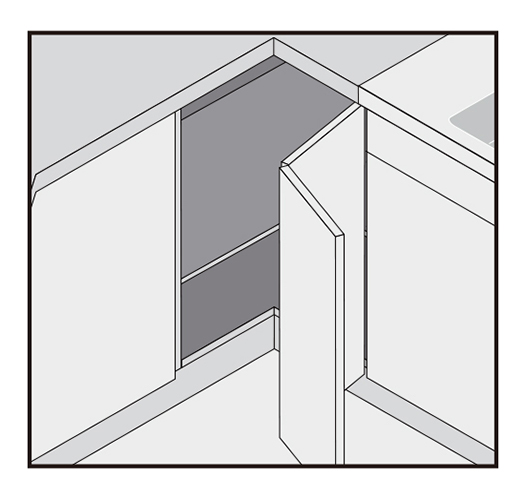

Application of Ø 35mm hinge
H=Height of hinge base
D=Required overlay on side board
K=Distance between door edge and drilling
holes on hinge cup
X=Gap between mounting plate and board
