HG1901 | 90° Slide-on hinge

HG1901 | 90° Slide-on hinge

Short Description

• Main material: cold-rolled steel.

• Closing angle: 90°.

• Opening angle: 95°.

• Dia. of hinge cup: 35mm.

• Depth of hinge cup: 12.7mm.

• Door(C) dimension: 3-7mm.

• Door thickness: 14-23mm.


Product Detail

Product Tags

Technical Specifications

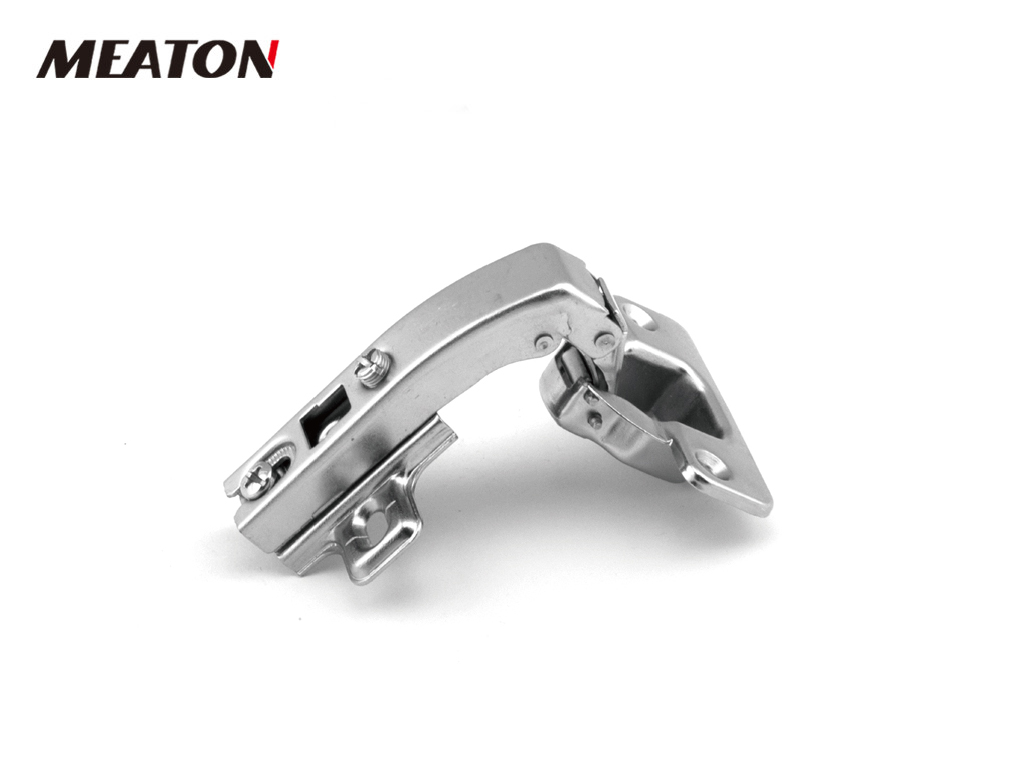

HG1901_01

• Main material: cold-rolled steel.

• Closing angle: 90°.

• Opening angle: 95°.

• Dia. of hinge cup: 35mm.

• Depth of hinge cup: 12.7mm.

• Door(C) dimension: 3-7mm.

• Door thickness: 14-23mm.

Installation method Hinge cup (mm)
45 48 52
Chipboard screw on 333.023.492 333.023.592 333.023.692
Euro screw on / 333.023.593 /
M8 dowel 333.023.498 333.023.598 333.023.698
M10 dowel 333.023.499 333.023.599 333.023.699

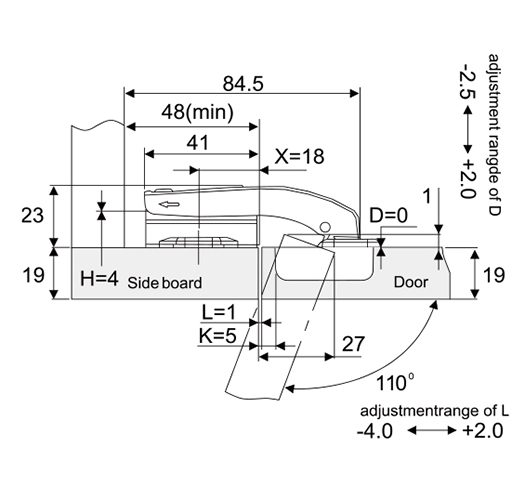

Application of Ø 35mm hinge

H=Height of hinge base
D=Required overlay on side board
K=Distance between door edge and drilling
holes on hinge cup
X=Gap between mounting plate and board

HG1901_06

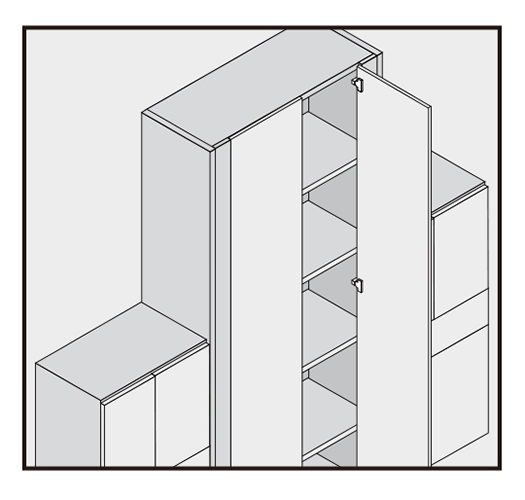

HG1901_07
