HS2120 | 35mm cup 105 Degree Clip-on Hydraulic Glass Hinge

Short Description

Meaton 105 degree clip-on glass hinge with SOFT CLOSING – Each hinge features a premium damper that allows for a slow and soft close every time.

Send email to us

Product Detail

Product Tags

HS2120

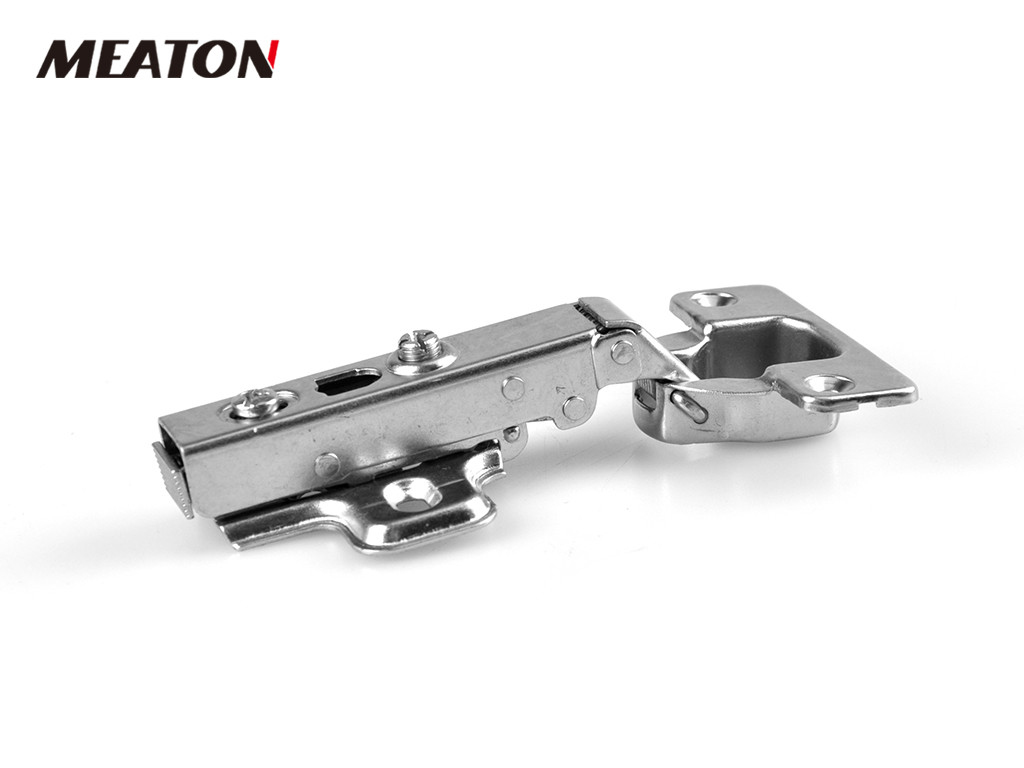

Meaton 105 degree clip-on glass hinge with mounting plate for installation. 105 degrees opening concealed hinge for glass with soft closing function. Door opens without hitting adjacent cabinets. Ideal when 2 doors are close together. Nickel finished zinc alloy plate. Nickel finished steel mounting plate. SGS complaint.

Technical Specifications

• Main material: cold-rolled steel.

• Finish: nickel plated.

• Opening angle: 105°.

• Dia. of hinge cup: 35mm.

• Depth of hinge cup: 11.5mm.

• Door thickness: 14-21mm.

• With self-closing function.

• Concealed hydraulic hinge, clip-on.

Product Parameters

Finish	Nickle plate
Softclose support	Support
Material	Cold-rolled steel
Closing Angle	105°
Dia of hinge cup	35mm
Depth of hinge cup	11.5mm
Door thickness	14-21mm
Installation	Clip-on
Weight	98G±3
Size	Overlay
Opening & closing cycle	50,000 times
