HS0901 | 90 Degree Slide-on Soft-Close Kitchen Concealed Hinges

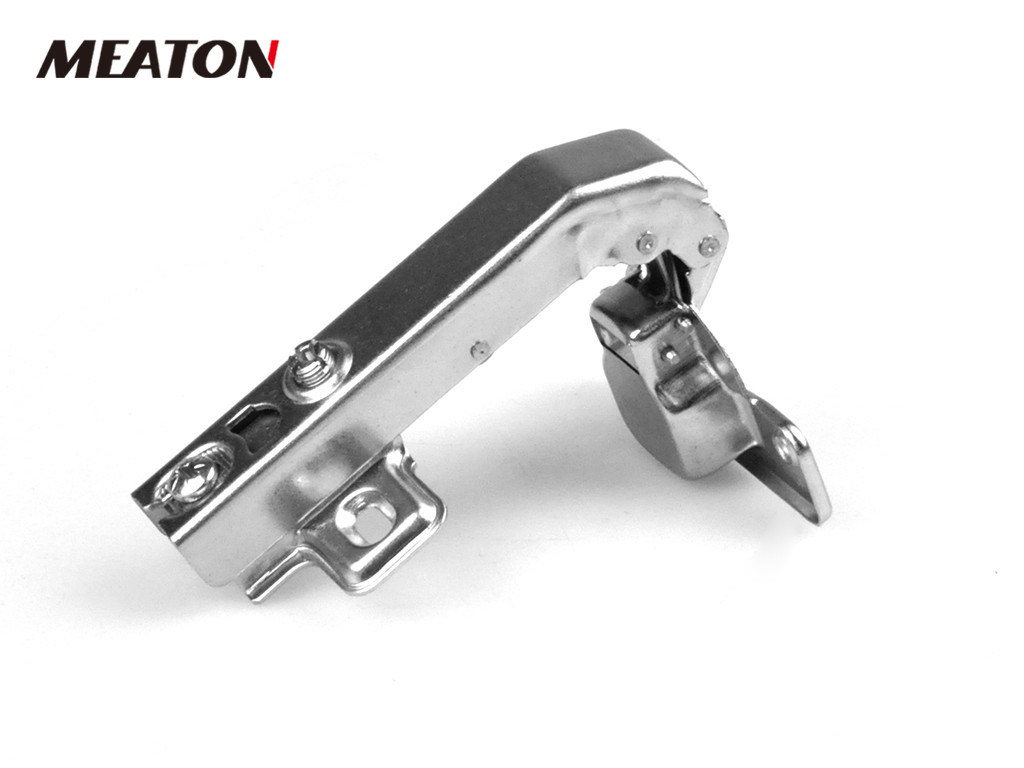

HS0901 | 90 Degree Slide-on Soft-Close Kitchen Concealed Hinges Featured Image
  • HS0901 | 90 Degree Slide-on Soft-Close Kitchen Concealed Hinges

HS0901 | 90 Degree Slide-on Soft-Close Kitchen Concealed Hinges

Short Description

90 Degree Slide-on Cabinet Hinge Self Close Hydraulic Cupboard Kitchen Cabinet Cupboard Furniture Hinge. Cabinet Hinges surface is plated to make the whole even and bright and not easy to rust, which is delicate and practical. The hinged arms and articulated cup holders are crafted for durability.


Product Detail

Product Tags

HS0901

The 90 degree cabinet door hinges are made of standard cold-rolled steel. The Door Hinge has super load-bearing capacity that maximum load-bearing capacity and has an extremely long service life. High-strength carbon steel casting forged rivets make the joints more stable, satisfying the long-term opening and closing movement of the hinge without breaking.

HS0901

Technical Specifications

• Main material: cold-rolled steel.

• Closing angle: 90°.

• Opening angle: 95°.

• Dia. of hinge cup: 35mm.

• Depth of hinge cup: 11.3mm.

• Door(C) dimension: 3-7mm.

• Door thickness: 14-23mm.

Product Parameters

Finish Nickle plate
Material Cold-rolled steel
Angle 90°
Dia of hinge cup 35mm
Depth of hinge cup 11.3mm
Door thickness 14-23mm
Installation Specialtype/slides-on
Size Overlay, half-overlay, insert
Weight 90-92.2g±3
Opening & closing cycle 50,000 times
