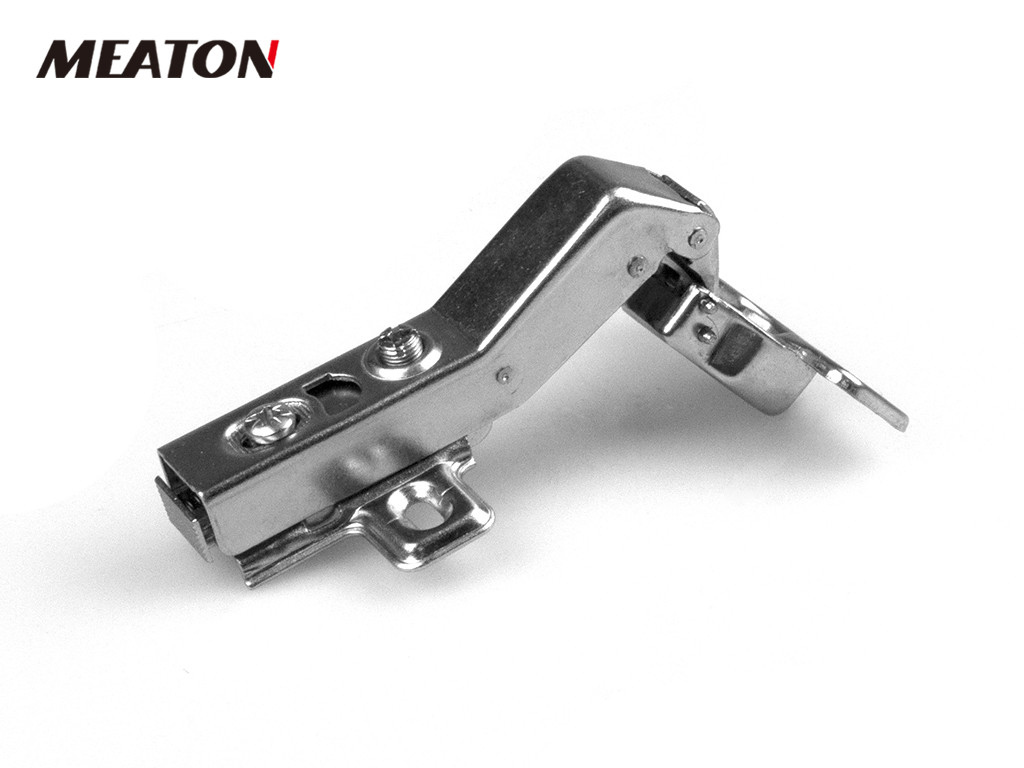

HS2451 | 45 Degree Clip-on Soft-Close Kitchen Concealed Hinges

HS2451 | 45 Degree Clip-on Soft-Close Kitchen Concealed Hinges

Short Description

Soft Closing Hinge 45 Degree, Full Overlay Frameless Concealed Kitchen Cabinet Door Hinges


Product Detail

Product Tags

HS2451

Wall cabinets are a popular and effective way to maximize storage space and style in the corner of your kitchen or bathroom. However, their design places the door and sides at a 45-angle rather than the standard 90-degree angle, which means standard hinges just won't do. Our concealed hinges are specially designed for these cabinets so you can enjoy all their benefits while having a working door.

HS2451

Technical Specifications

• Main material: cold-rolled steel.

• Closing angle: 45°.

• Opening angle: 95°.

• Dia. of hinge cup: 35mm.

• Depth of hinge cup: 11.3mm.

• Door(C) dimension: 3-7mm.

• Door thickness: 14-23mm.

Product Parameters

Finish Nickle plate
Material Cold-rolled steel
Angle 45°
Dia of hinge cup 35mm
Depth of hinge cup 11.3mm
Door thickness 14-23mm
Installation Clip-on
Size Full Overlay
Function Soft close
Opening & closing cycle 50,000 times
